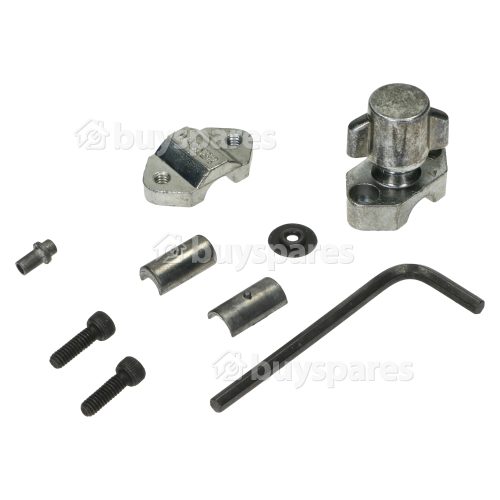

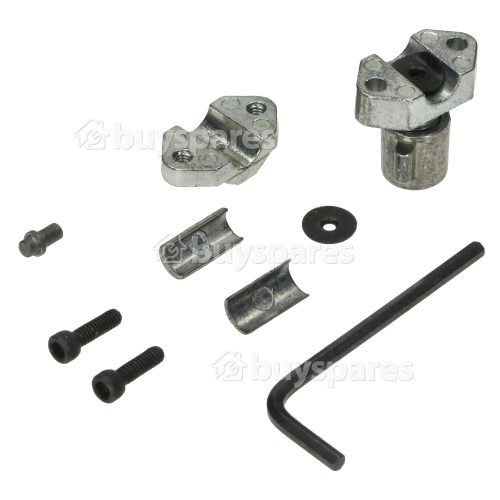

Bullet Piercing Valve

If your fridge freezer is no longer operating at the correct temperature, then you may have a fault with the bullet piercing valve. With this great spare from our extensive range of spares and accessories you will soon get your appliance back to its best.

Specification:

• Complete kit for tubing from 1/4 " To 3/8 "
• Bullet® Piercing Valve” utilizes the same type of gasket found under the head plate of most air conditioning compressors. When installed, the gasket actually compresses the copper tubing .020”
• Patented valve gasket application provides 50 times more sealing area than competitive “O” ring types
• A sealing force of over 180 inch lbs., torque tested with 500 lbs., pressure tested at 250°F
• Precision piercing needle is engineered for concentricity and hardness to insure perfect seating every time
• Non positional mounting — No adapter valve required
• Requires only a 2” clearance area for installation and operation
• Hex key wrench included — No additional tools required
• Corrosion resistant plated
• Applications: Install on the high side as a permanent valve on the job, Install on round suction lines or uneven tubing
• Manufacturers’ names and numbers are used for reference purposes only. These parts are in no way associated with the initial manufacturers parts

Manufacturers Part Number

• FRG3420

EAN

• 5031680065800
