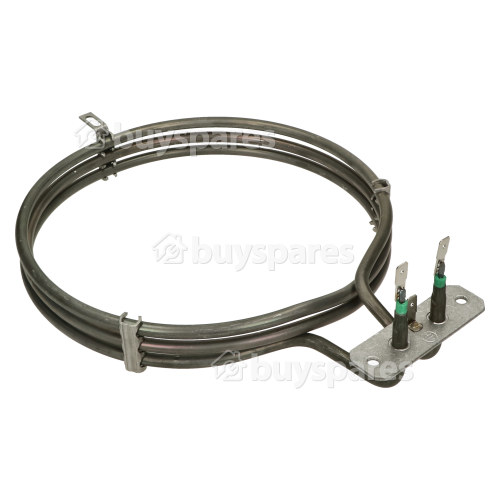

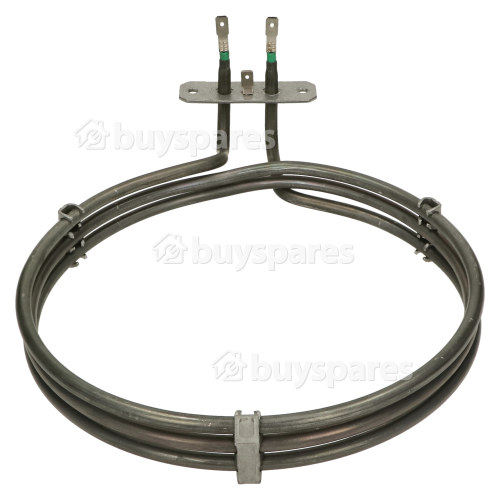

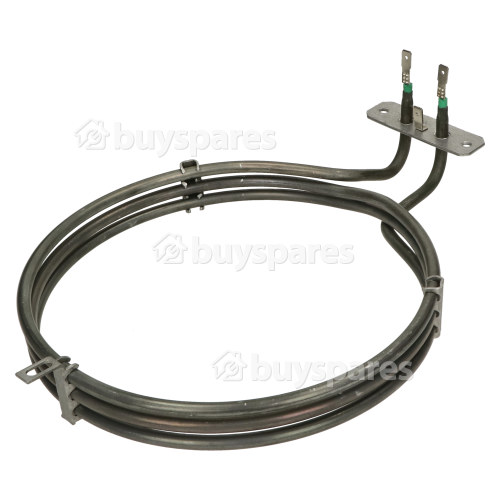

Electrolux Fan Oven Element 2500W

Make sure your cooker or oven is heating up correctly by replacing the fan oven element if it no longer functions as it should.

The fan oven element is responsible for heating the oven cavity in order to cook the food. In an electric cooker when the cooker is turned on, electricity flows to the element which causes it to heat up. Once the element reaches the desired temperature then the electricity flow switches on and off to maintain the temperature. This process is controlled by the thermostat.

Oven elements fail when the internal element filament burns out, this can cause the element to short circuit. There may be visible signs the element has blown such as a split, bulge, or blow hole on the element. Other signs of a failed element include; the oven not heating up, the oven blowing out cold air or bright spots during use.

The causes of element failure

There are a number of factors that can cause an oven element to blow. Damage due to the expansion and contraction of the element coils caused by the element constantly heating up and cooling down is a very common cause. While other causes of element failure can include overheating as a result of a failed thermostat or in some cases a build-up of grease causing the fan motor to run slowly.

• 2500 watts
• 3 Turn
• Height 250 mm
• Width 192 mm
• Bracket 70 mm
• Tags 24 mm
• Manufacturers’ names and numbers are used for reference purposes only. These parts are in no way associated with the initial manufacturers parts

Manufacturers Part Number

• ELE9346

EAN

• 5045382401392
