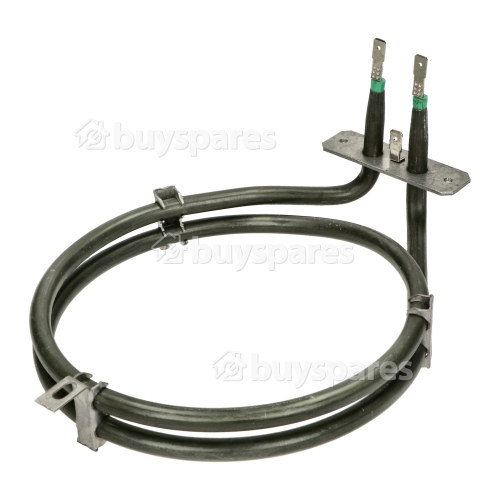

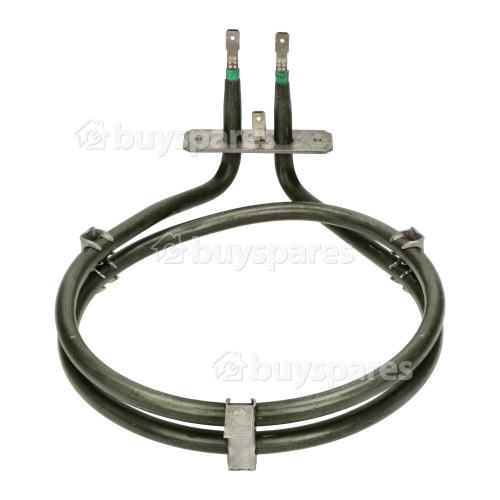

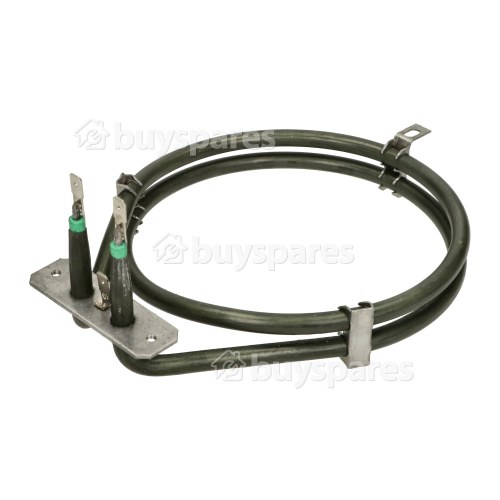

Fan Oven Element 1600W

The fan oven element is responsible for heating the oven cavity in order to cook the food.

In an electric cooker when the cooker knob is turned on, electricity flows to the element which causes it to heat up. Once the element reaches the desired temperature then the electricity flow switches on and off to maintain the temperature. This process is controlled by the thermostat.

The following faults typically indicate a problem with the oven element:

o The fan oven is blowing out cold air
o The oven won't heat up at all
o The element doesn't heat up during operation
o There are bright spots or uneven patches on the element during use.
*Remember that a blown oven element may not be the only fault that can cause these issues to arise.

Fan oven elements are not consumable parts and they only need to be replaced if they fail. Oven elements fail when the internal element filament burns out, this can cause the element to short circuit. There may be visible signs the element has blown such as a split, bulge, or blow hole on the element.

There are a number of factors that can cause an oven element to blow. Damage due to the expansion and contraction of the element coils caused by the element constantly heating up and cooling down is a very common cause. While other causes of element failure can include overheating as a result of a failed thermostat or in some cases a build-up of grease causing the fan motor to run slowly.

Please check model fit list to ensure this part is correct for your model.

Specification:

• 1600 watts
• 2 Turn
• Height 200 mm
• Width 155 mm
• Bracket 70 mm
• Tags 24 mm

Manufacturers Part Number

• 766222

Alternative Part Numbers

• 462300009

EAN

• 5045382491379
