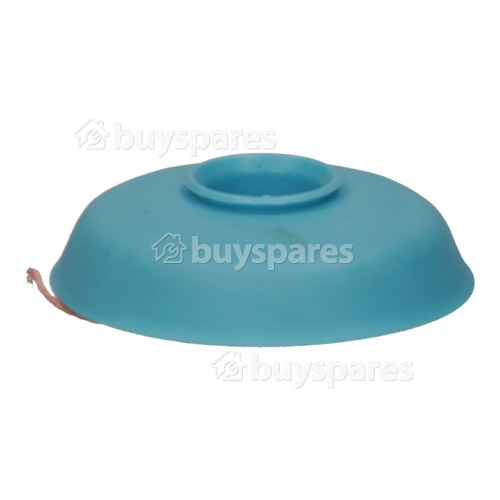

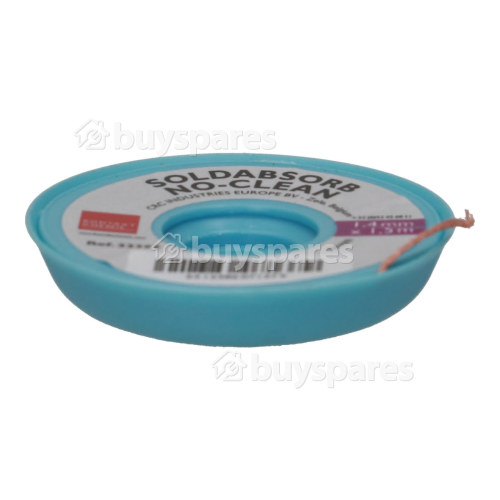

SOLDABSORB NO CLEAN Solder Absorbent 1.4mm X 1.5m

The SOLDABSORB NO CLEAN Solder Absorbent is a fine gauge copper braid with improved wicking action!

This Desoldering Braid is up to 4 times quicker than wicks based on Rosin, thus reducing the risk of heat damage and the residue is halide free and non conductive which means it does not need to be cleaned off.

APPLICATIONS:
- Control assemblies.
- Printed circuit boards.
- Electronic components.
- For freeing components, desoldering plated through holes end preventing short circuits by removing solder bridges.

DIRECTIONS:
- Choose a SOLDABSORB width equal or slightly larger than the pad or connection.
- Choose a solder iron tip equal or slightly larger than the pad or connection.
- Place the SOLDABSORB wick on the solder joint and place the tip of the solder iron on the wick.
- Apply firm pressure.
- As the solder will be absorbed, the colour of the wick will turn from copper to silver.
- Remove iron and wick from the joint simultaneously once the colour change has stopped.
- Cut off and discard the used part of the SOLDABSORB wick.

For excellent thermal conductivity and so faster desoldering at lower temperatures.

Specification:

• 1.4mm x 1.5m
• Fine gauge copper braid with improved wicked action
• Residue does not need cleaning
• Non-oxidized and oil free fine gauge copper wire
• Impregnated with a special flux for improved wicking action
• Residue is halide free and non conductive
• Up to 4 times quicker than wicks based on Rosin
• Pure copper braid for excellent thermal conductivity - so faster desoldering at lower temperatures
• Quick and clean desoldering of electronic component

Manufacturers Part Number

• 1032766

EAN

• 5412386071379
